Polini 221cc Mark 2 ALUMINIUM CYLINDER KIT WITH HEAD - VESPA 200 fitted with 60mm CRANK. The Polini cylinders have always been good powerful cylinders, this 2023 revised version of the Polini 221 kit (often referred to as a 225 kit) now comes with a revised stronger piston, and a steel bolt on exhaust stub. Cross reference Polini 140.0232

POLINI ALUMINUM CYLINDER KIT FOR VESPA 200 PE – PX 221cc. The Ø68,5 cylinder with 60mm stroke, allows the displacement to increase to 221cc; made of aluminum allows a better heat dissipation by lowering the operating temperature in the most difficult conditions. The cylinder has been renewed by replacing the exhaust mounting, obtained from castings, with a single piece steel manifold fixed with 4 screws to the cylinder. The piston has been entirely redesigned with large passages on its skirt, to facilitate the feeding of the transfer ducts. The shape of the dome has been optimized to increase resistance and cooling. The head with increased finning over the entire surface allows the achievement to the maximum heat dispersion. The dome is entirely machined and coupled to a copper seal to improve performance and optimize cooling; the centering pins of the cylinder allow having a constant squish area over the entire diameter of the cylinder. The Polini aluminum cylinder kit for Vespa code 140.0232 increases performance by 6%, compared to the same rotation speed compared to the previous model, item. 140.0084. Polini aluminum power unit for Vespa: item 140.0232 for VESPA 200 2stroke COSA - 200 2T PE, PX 100% Made in Italy

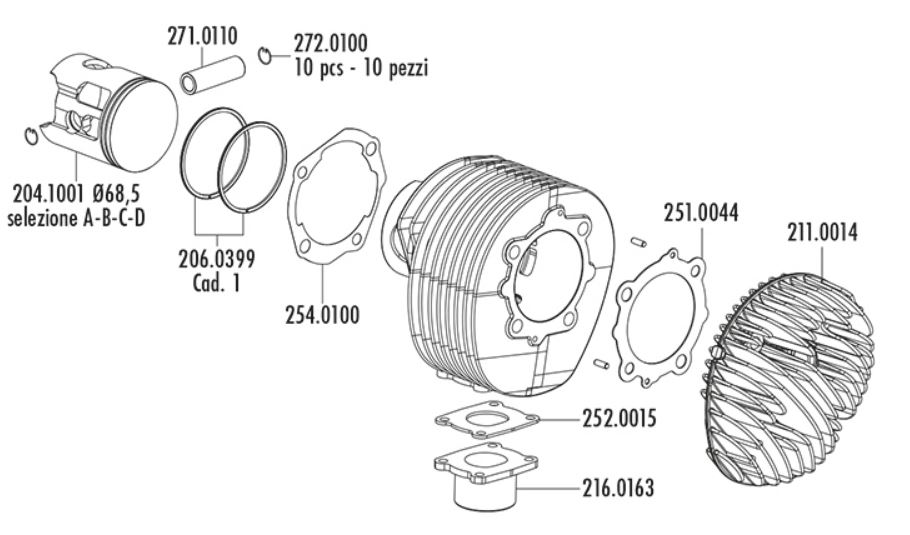

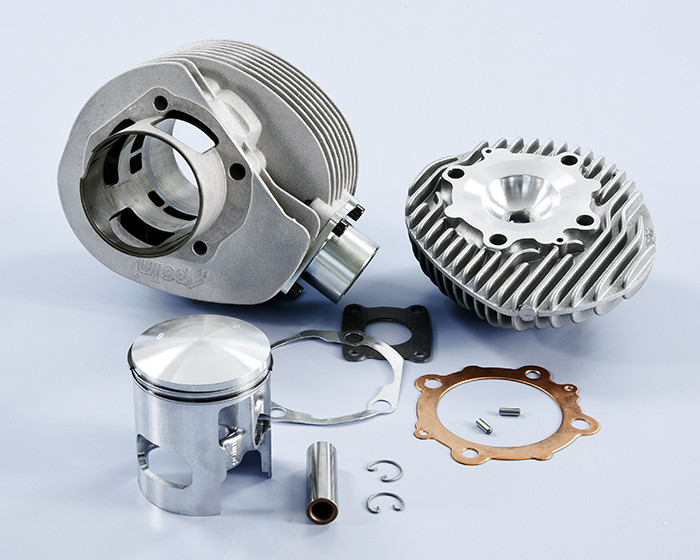

The kit includes:

• Cylinder

• Cylinder head

• piston

• Piston rings

• Piston clips

• Piston pin

• Gasket set
• Exhaust port, plate, O-ring

• Bushings for head centring

 Compatible with the following models
