Description
Vespa GTS 125-250-300
HT Lead, HT Cap & All Rubbers Boots Clips Etc
This 6 pc kit has been put together by us at Vespajets as a complete set of genuine Piaggio parts to replace a faulty HT lead, This set is for the GTS but may also fit other models of injection Vespa and piaggio scooters.

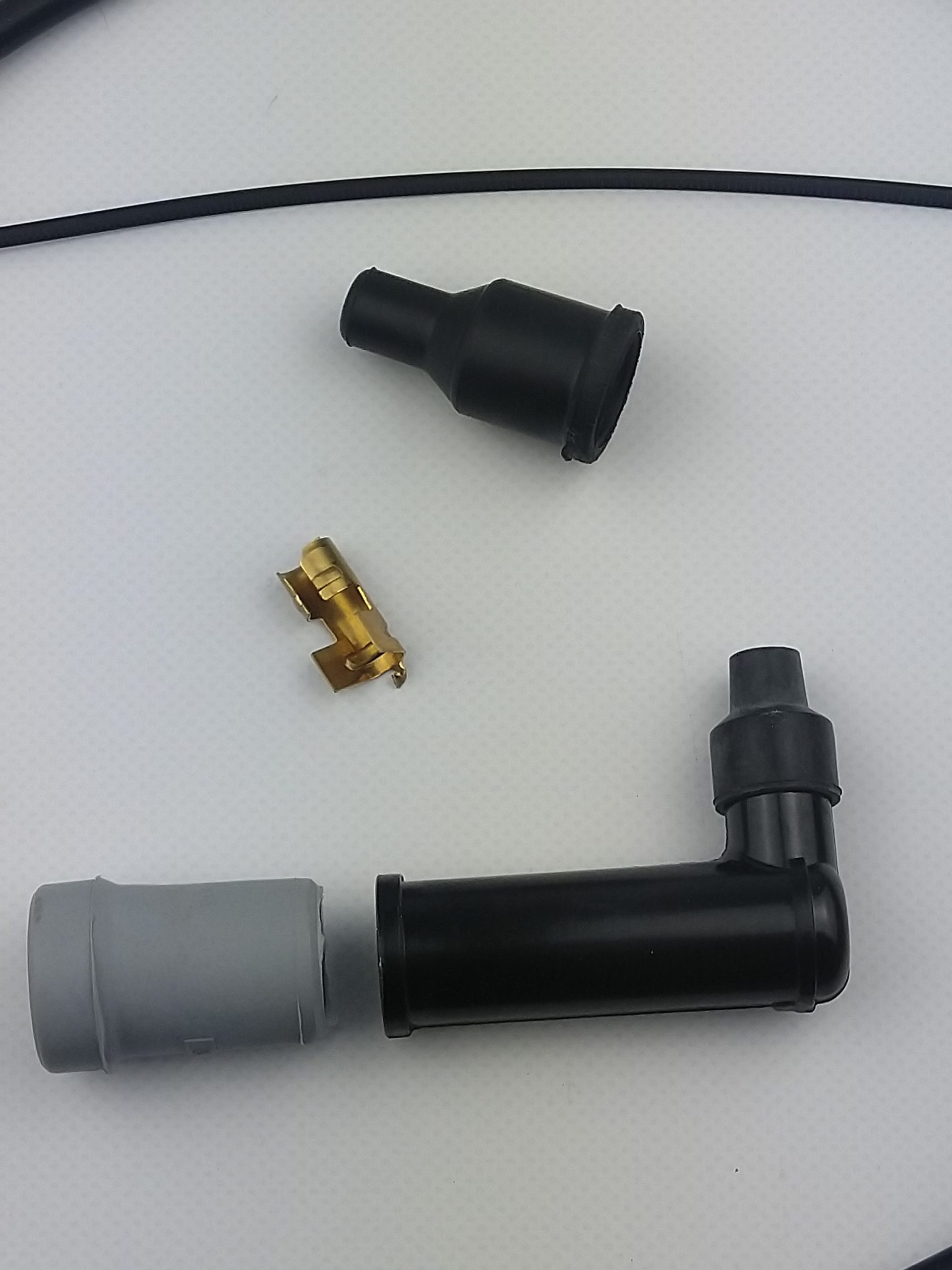

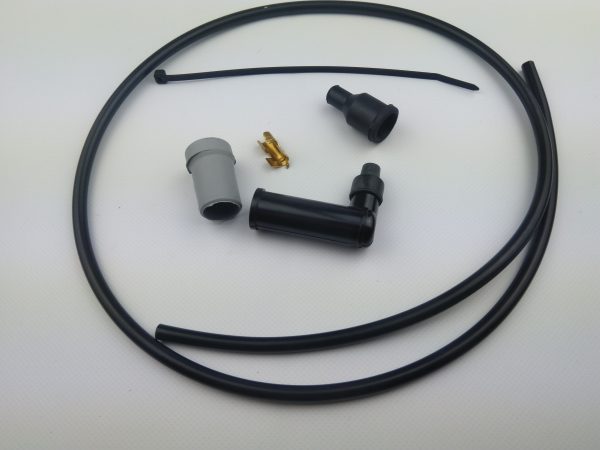

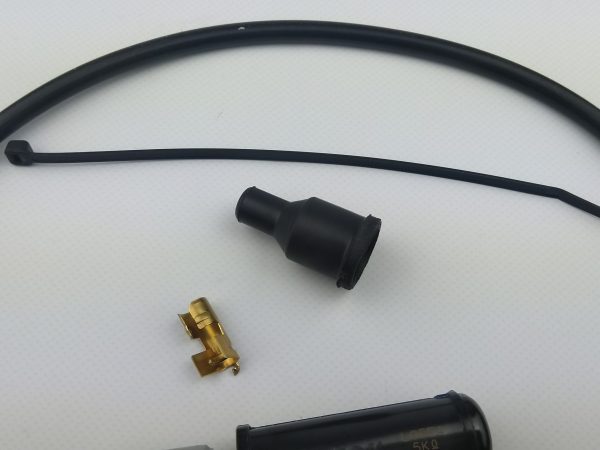

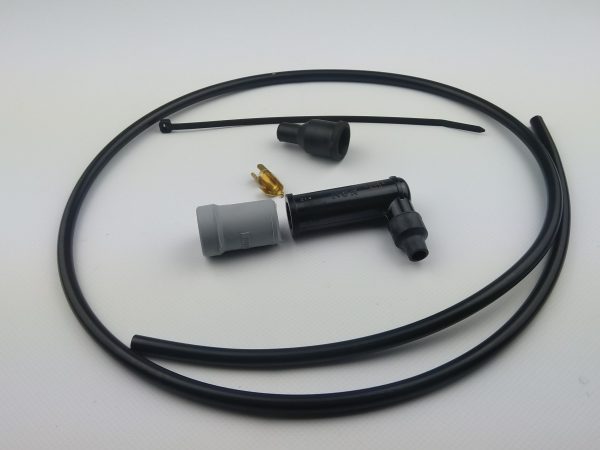

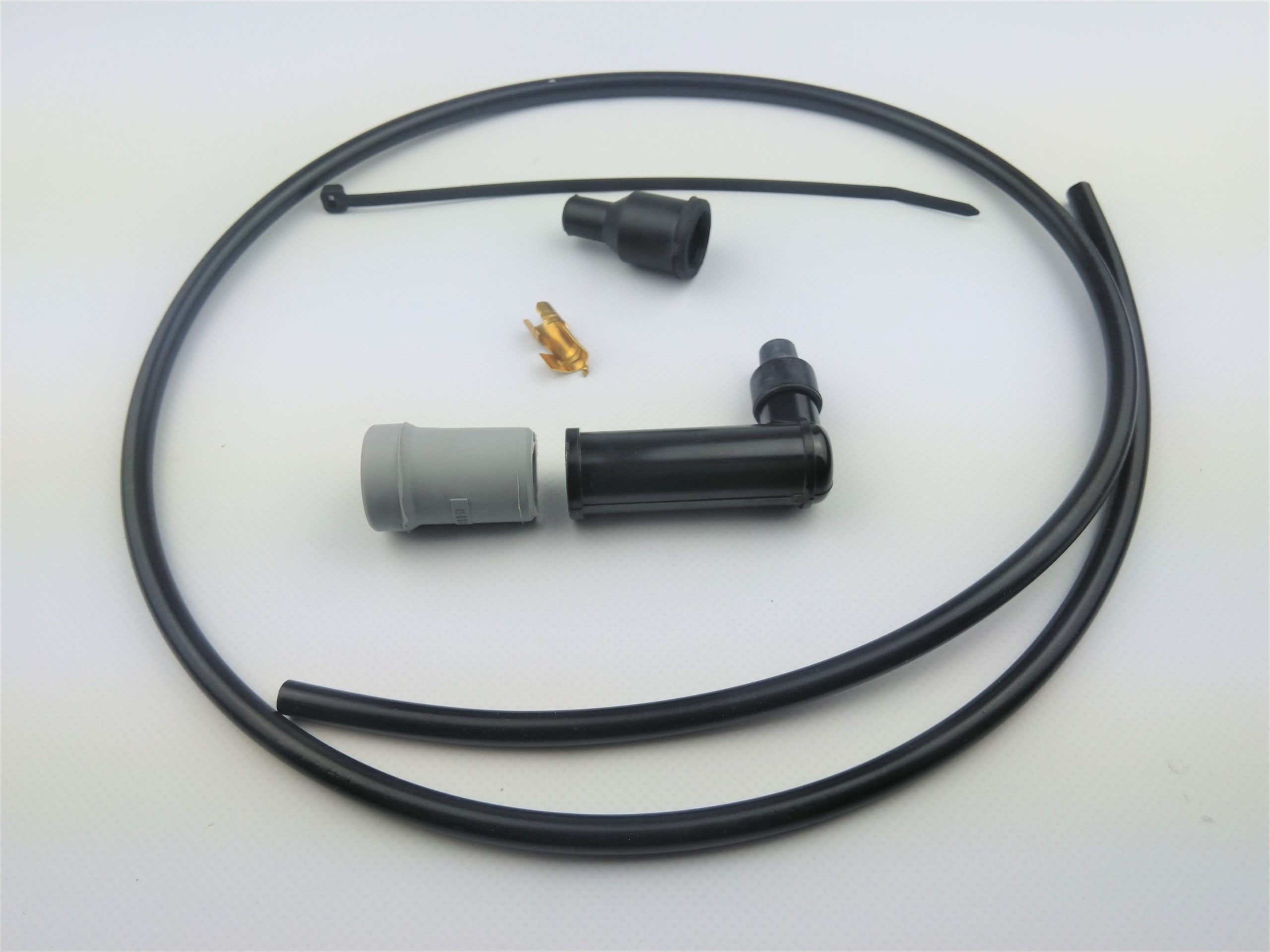

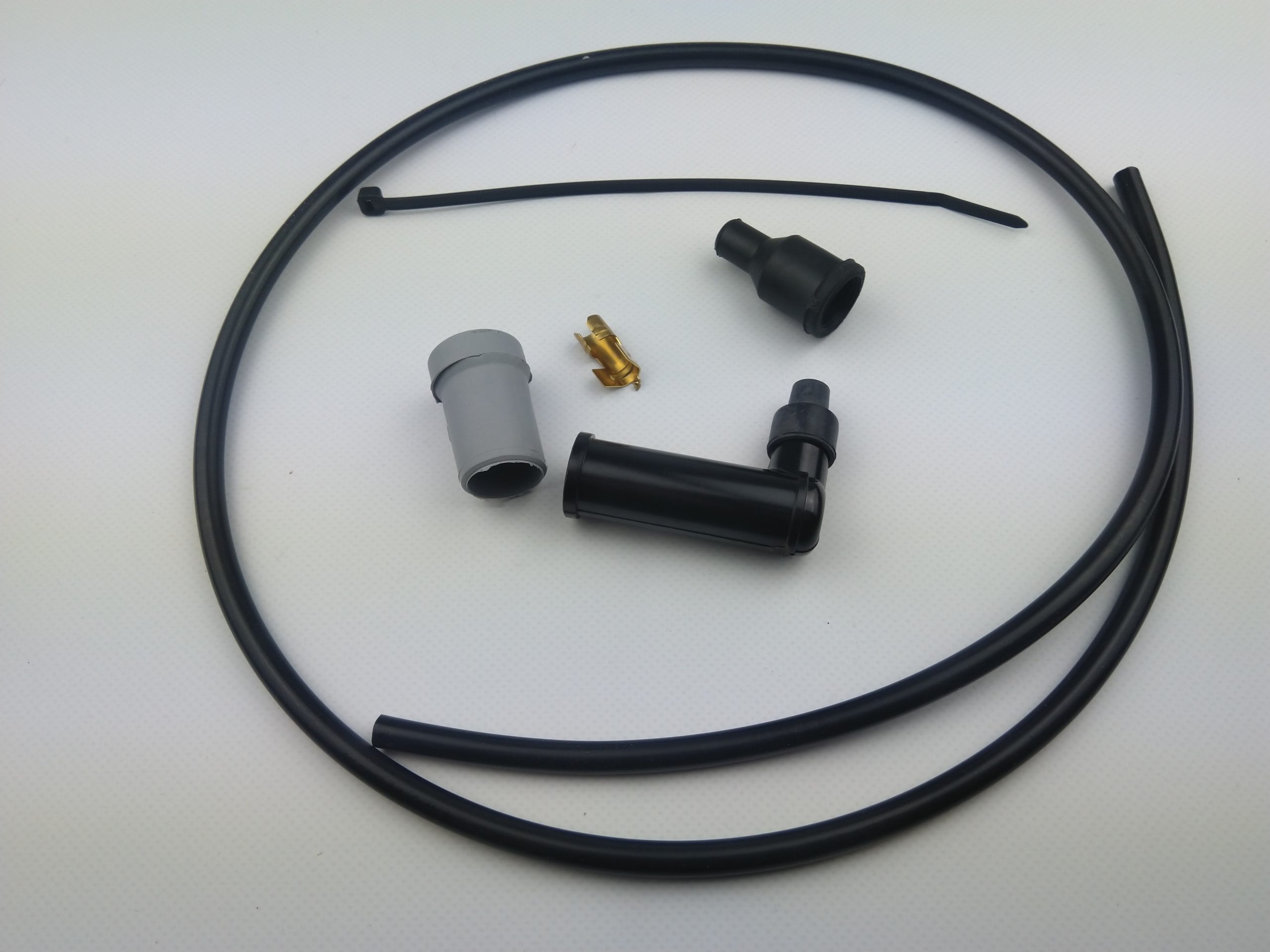

Kit includes

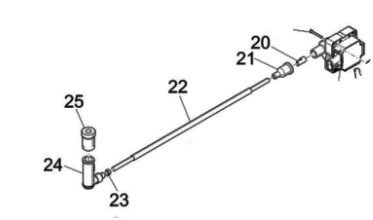

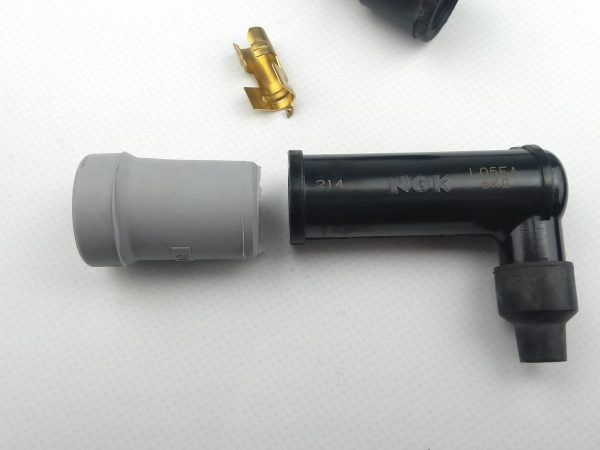

- No 24 HT Cap NGK L05EA, 969348 (PIAGGIO)
- No 25 Rubber cap on the end of the HT cap 641643 (PIAGGIO)
- No 22 HT Lead 080341 (PIAGGIO)
- No 23 Cable tie 145298 (PIAGGIO)

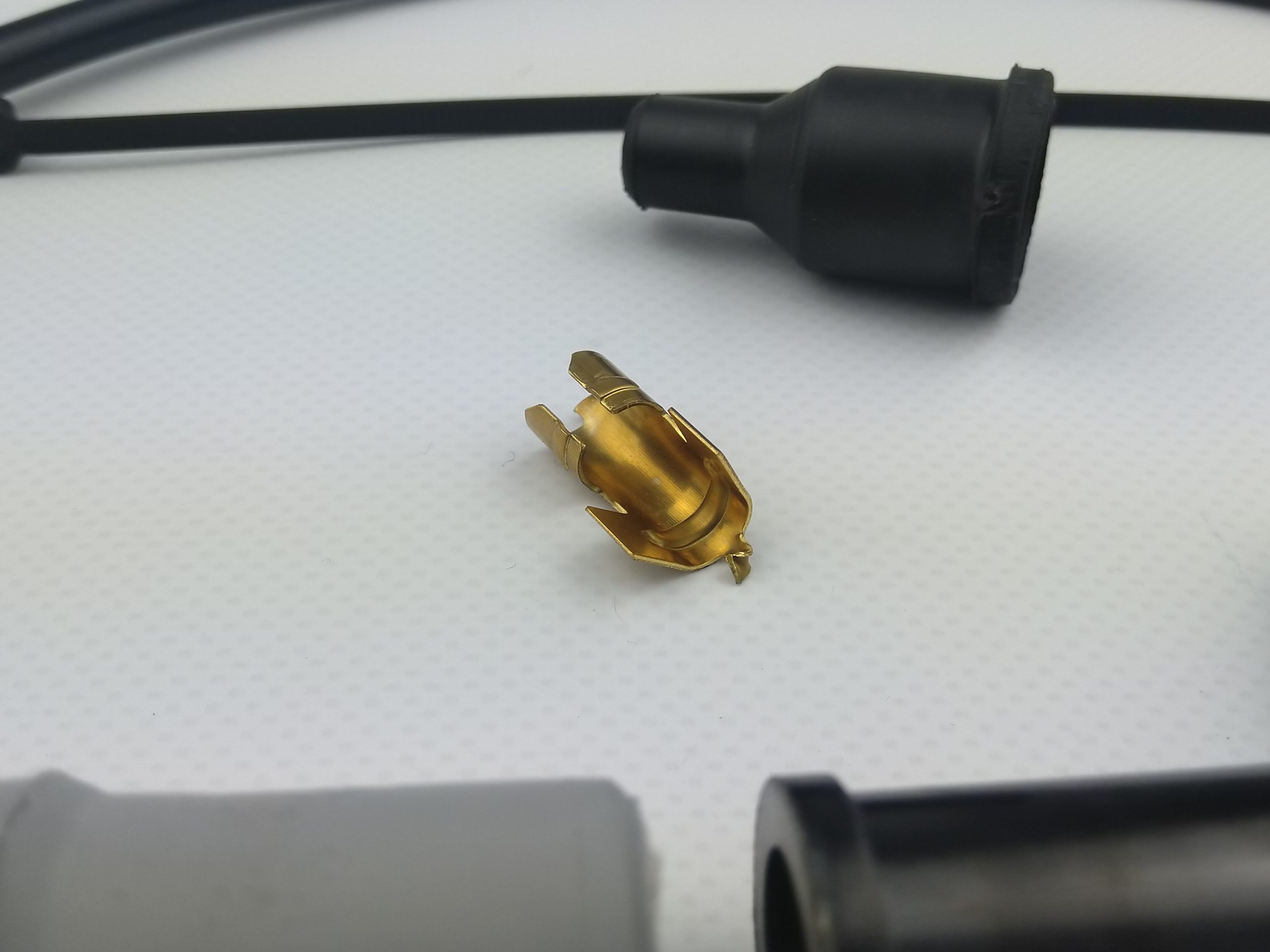

- No 20 HT brass terminal where it clips into the HT coil 015014 (PIAGGIO)
- No 21 rubber boot to go onto HT coil 071671 (PIAGGIO)
Using Piaggio part numbers
- 969348 (PIAGGIO)
- 641643 (PIAGGIO)
- 080341 (PIAGGIO)
- 145298 (PIAGGIO)
- 015014 (PIAGGIO)
- 071671 (PIAGGIO)
| VESPA GTS i.e. / Touring | 300 | ZAPM45200 / ZAPM45202 | 4T LC | '14-'16 | |
| VESPA GTS i.e. / Touring | 300 | ZAPMA3300 | 4T LC | '17-'18 | |
| VESPA GTS i.e. / Touring 4V HPE | 300 | ZAPMA36, ZAPMA39 | 4T LC | '19-'20 | |
| VESPA GTS i.e. / Touring 4V HPE Euro5 | 300 | ZAPMD31, ZAPMD3101 | 4T LC | '20-'22 | |
| VESPA GTS i.e. / Touring 4V HPE Euro5 | 300 | ZAPMD3103, ZAPMD3104 | 4T LC | '22- | |
| VESPA GTS i.e. | 250 | ZAPM45100 / RP8M45410 | 4T LC | '05-'14 | |
| VESPA GTS i.e. Super / Super Sport / Supertech 4V HPE | 300 | ZAPMA36, ZAPMA39 | 4T LC | '19-'20 | |
| VESPA GTS i.e. Super / Super Sport / Supertech 4V HPE Euro5 | 300 | ZAPMD31, ZAPMD3101 | 4T LC | '20-'22 | |
| VESPA GTS i.e. Super / Super Sport / Supertech 4V HPE Euro5 | 300 | ZAPMD3103, ZAPMD3104 | 4T LC | '22- | |
| VESPA GTS i.e. Super / Super Sport | 125 | ZAPM45300 / ZAPM45301 | 4T LC | '14-'16 | |
| VESPA GTS i.e. Super / Super Sport | 300 | ZAPMA3300 | 4T LC | '17-'18 | |
| VESPA GTS i.e. Super | 125 | ZAPM45300 | 4T LC | '14-'16 | |
| VESPA GTS i.e. Super | 300 | ZAPM45200 / ZAPM45202/ ZAPM459L | 4T LC | '14-'16 | |
| VESPA GTV i.e. | 300 | ZAPM45201/ ZAPM459L | 4T LC | '10-'13 | |
| VESPA GTV i.e. HPE RST Euro5 | 300 | ZAPMD3108 | 4T LC | '23 | |
| VESPA GTV i.e. Sei Giorni | 300 | ZAPMA3302 | 4T LC | '17-'18 | |
| VESPA GTV i.e. Sei Giorni 4V HPE | 300 | ZAPMA3602, ZAPMA39 | 4T LC | '19-'20 | |
| VESPA GTV i.e. Sei Giorni 4V HPE Euro5 | 300 | ZAPMD3102 | 4T LC | '20-'22 |
